INCH-POUND
MS20668H
19 September 2011
SUPERSEDING MS20668G
5 November 2001
DETAIL SPECIFICATION SHEET TERMINAL, WIRE ROPE, SWAGING, EYE END
This specification sheet is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet, MIL-DTL-781, and QPL-781.
NOTES: (a) Reference dimensions are for design purposes only and are not an inspection requirement. (b) Swaged terminals shall conform to 0As for length X.

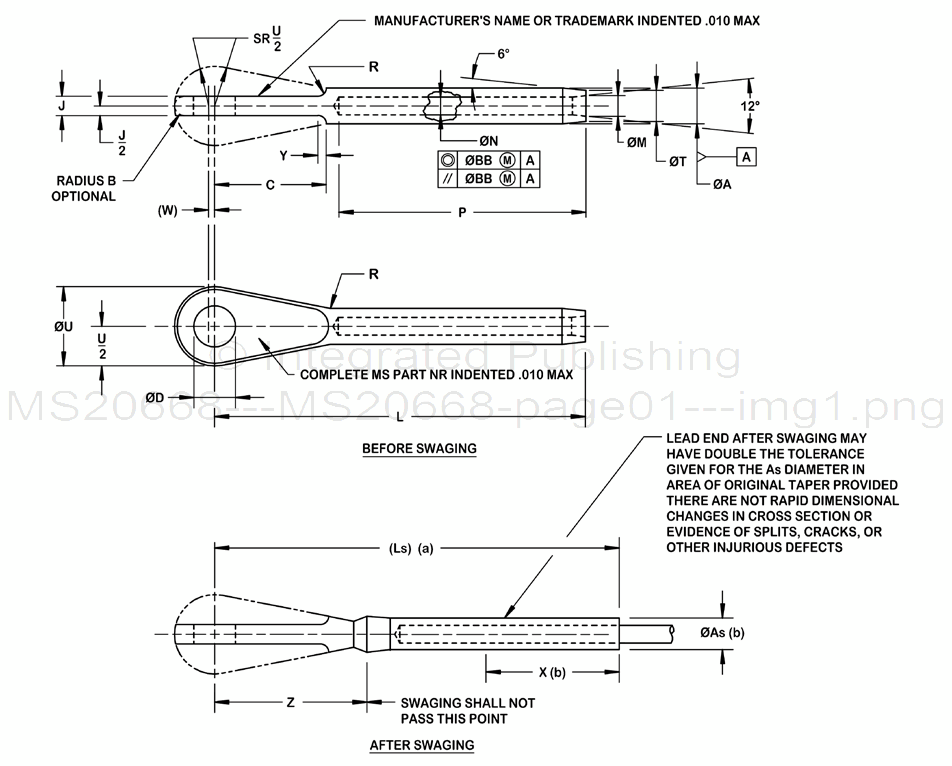

FIGURE 1. Terminal, wire rope, swaging, eye end.
AMSC N/A FSC 1640
